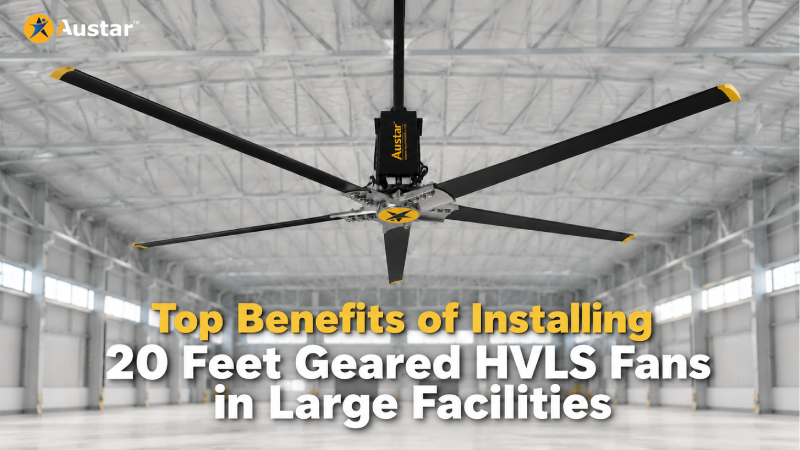

Top Benefits of Installing 20 Feet Geared HVLS Fans in Large Facilities

Large industrial facilities, warehouses, manufacturing plants, logistics hubs, distribution centers, and commercial spaces often face challenges related to airflow, temperature control, employee comfort, and energy consumption. Traditional cooling systems may struggle to distribute air effectively across expansive areas, leading to hot spots, poor ventilation, and higher operational costs. This is where 20 Feet Geared HVLS Fans play a significant role.

High Volume Low Speed (HVLS) fans are designed to move a large volume of air while operating at low rotational speeds. Their massive diameter allows them to create a steady airflow that covers a wide area with minimal energy consumption. As a trusted 20 Feet Geared HVLS Fan Manufacturer, Austar Technologies provides advanced fan solutions that help industries create comfortable and productive working environments.

Understanding the Product: What Makes the 20-Feet Geared HVLS Fan the Right Choice

Before diving into the benefits, it is worth understanding precisely what distinguishes the 20 Feet Geared HVLS Fan from both smaller HVLS variants and from conventional cooling alternatives. The AS205 model drives five cambered aerofoil blades — each manufactured from Aluminium 6063 with a powder-coated finish, a sectional width of 220 mm, a wall thickness of 2 mm, and 2 internal ribs for structural strength — across a 20-Feet diameter at a maximum speed of 50 RPM, variable from 0 to 60 RPM through its VFD controller. At this operating range, the fan delivers 340,000 CFM of air volume — a figure that directly translates into the volume of air displaced per minute across the facility's floor area.

The "geared" designation refers to the NORD German-make electric geared motor that sits at the heart of this fan. NORD is a globally recognized manufacturer of industrial drive systems, and the motor specified for the AS205 carries Class F insulation, IE2 efficiency rating, IP55 environmental protection, and a reinforced bearing design for demanding continuous-duty industrial operation. The motor draws 1.5 KW at rated conditions and transfers torque to the blade hub through a helical gearbox — a proven and well-understood mechanical arrangement that has delivered dependable large-fan operations across thousands of installations worldwide. The motor-hub assembly uses self-locking split couplings as the primary retention mechanism, with Austar Technologies' signature anti-fall S-bend safety system as a secondary protection against hub drop in the event of coupling failure. All fasteners throughout the assembly are high-tensile Grade 10.9 Nylock self-locking nuts, wrapped additionally with stainless steel safety wire at every bolted joint. The VFD controller is from Danfoss or Fuji make — two globally respected names in variable frequency drive technology — housed in an IP55-rated powder-coated steel cabinet, wall-mounted at 4 to 5 feet from floor level and operated via a keypad with long-life keys for Start/Stop, Forward/Reverse, and speed adjustment. Cable connections throughout the system are plug-and-play for straightforward installation and maintenance access.

Exceptional Airflow Coverage from a Single Installation Point

The single most immediately quantifiable benefit of the 20 Feet Geared HVLS Fan is the sheer coverage it delivers per unit. At 340,000 CFM, a single AS205 unit moves an extraordinary volume of air across a wide Footprint — far beyond anything achievable with the same number of conventional fans consuming comparable electrical power. For facility managers planning new installations or replacing legacy cooling infrastructure, this translates directly into fewer mounting points, simpler wiring, reduced installation time, and lower total equipment cost. For maintenance teams, it means fewer units to inspect, fewer motors to service, and fewer failure points to manage across the facility's operational life. The 20-Feet blade diameter is specifically suited to mid-to-large-scale industrial bays, warehousing floors, airport departure halls, and community spaces where a 16-Feet model falls short of full coverage, but the ceiling height or structural constraints of the building do not comfortably accommodate a 24-Feet installation.

Measurable and Sustained Energy Cost Reduction

A facility's electricity bill is one of its most controllable operational costs — and the 20 Feet Geared HVLS Fan has a direct and measurable impact on it. The AS205 motor draws 1.5 KW at full operating speed. Compare this against the combined electrical load of 15 to 20 conventional pedestal or wall-mounted fans covering the same floor area, and the energy saving is immediate and significant. But the bigger energy story lies in the interaction between HVLS fan operation and the facility's air conditioning system. Consistent, large-volume air movement at floor level reduces the perceived temperature by several degrees — the wind chill effect of gentle air movement makes 30°C feel closer to 25°C for the people working on the floor. This reduced thermal discomfort allows facility managers to raise air conditioning set-point temperatures without compromising worker comfort, and it reduces the duration and frequency of compressor operation. The cumulative effect on annual HVAC energy expenditure is significant, and for large facilities operating around the clock, the return on the capital investment in a 20 Feet Geared HVLS Fan Manufacturer's product is typically achieved within a well-defined and predictable payback period.

Worker Comfort, Health, and Productivity at Scale

The relationship between indoor air quality, thermal comfort, and worker performance is well established across industrial and occupational health research. Workers in facilities with stagnant, humid air experience elevated fatigue, more frequent heat-related health complaints, reduced concentration, and higher error rates than workers in well-ventilated environments. The 20 Feet Geared HVLS Fan addresses all of these factors simultaneously. The continuous, uniform air movement it generates prevents the temperature stratification that creates hot ceiling zones and stuffy working-height environments. It reduces relative humidity on the floor by keeping air in motion, which prevents moisture accumulation on surfaces and in the breathing zone. It eliminates the stagnant air pockets in corners and behind racking systems where heat and airborne contaminants accumulate. Workers notice the difference immediately — and Austar Technologies' customers across industries including automobile manufacturing, food processing, textile production, and coordination consistently report improvements in staff comfort, reduced heat-related complaints, and sustained productivity through long operating shifts after installation.

Robust, German-Engineered Construction for Industrial Reliability

In a large industrial facility, every piece of overhead equipment must be trusted absolutely. The consequences of mechanical failure in a ceiling-mounted fan — from unexpected shutdown disrupting operations to, in a worst case, structural failure — make the engineering quality and safety design of the AS205 a critical purchase consideration. Austar Technologies has addressed this by specifying the NORD German-make geared motor — a product built to IE2 efficiency standards with Class F insulation and reinforced bearings for continuous industrial duty — as the primary drive component. The single-piece die-cast aluminium hub is manufactured to HE9 grade with radiography testing confirming internal structural integrity before assembly. The anti-fall S-bend safety system provides secondary mechanical protection against hub drop independent of the primary motor-hub coupling. Nylock self-locking nuts on all fasteners, compounded by SS safety wire wrapping on every bolted joint, eliminate mechanical loosening as a failure mode over the product's operational life. The structural frame and hanging structure are fabricated from powder-coated mild steel designed for long-term load bearing in demanding industrial environments. The AS205 carries CE certification verified by TUV Nord — third-party independent confirmation that the product meets international safety and electromagnetic compatibility standards.

Condensation Control and Protection of Goods and Surfaces

One of the less widely understood but commercially significant benefits of consistent HVLS fan operation in warehouses, food processing facilities, and manufacturing plants is the control of condensation. When warm, humid air contacts a cooler surface — a concrete floor, a metal rack, a product pallet — moisture condenses on that surface. In a warehouse, condensation damages packaged goods, weakens cardboard, promotes mould growth, and creates hazards slip on floors. In a food processing facility, surface condensation creates hygiene risks that can compromise product safety and regulatory compliance. In a manufacturing plant, condensation on metal surfaces and machinery accelerates corrosion and contaminates precision components. The consistent air movement generated by a 20 Feet Geared HVLS Fan prevents the temperature stratification and stagnant air conditions that allow condensation to form. Air is kept in motion continuously across all surfaces, preventing the differential that drives moisture deposition. For facility managers responsible for product quality, regulatory compliance, and workplace safety, this benefit alone can justify the investment.

Versatility Across India's Most Demanding Large-Space Applications

The AS205's combination of 340,000 CFM air volume, variable speed from 0 to 60 RPM, forward/reverse operation, BMS compatibility, and matt black finish with customizable color options makes it genuinely versatile across a wide range of facility types. In warehouses and distribution centers, it prevents condensation, reduces heat fatigue among picking teams, and maintains product storage conditions. In automobile manufacturing plants, it normalizes the thermal environment across welding, paint, and assembly zones. In airports and railway stations, it maintains passenger comfort in large concourse and terminal areas. In gymnasiums and sports halls, it delivers consistent airflow that supports athlete performance without creating disruptive draughts. In canteens, auditoriums, and community halls, it regulates temperature and air quality in high-occupancy spaces that see large swings in thermal load. In food processing and pharmaceutical plants, it supports humidity control and air quality standards critical to regulatory compliance. Austar Technologies, as a trusted 20 Feet Geared HVLS Fan Manufacturer, brings experience across all of these sectors, and can design multi-fan installations tailored to each facility's specific floor plan, ceiling height, and operational requirements.

Long-Term Warranty and Pan-India After-Sales Support

A product of this scale and operational importance must be backed by warranty terms and service infrastructure that give facility operators genuine confidence in their long-term investment. Austar Technologies provides a 3-year warranty on the hub, blade, and structural components of the AS205, and a 1-year warranty on the geared motor and VFD controller. Pan-India after-sales support is delivered through 8 regional service centers with a 48-hour spare-parts dispatch commitment — meaning that facilities across all 28 Indian states served by Austar Technologies can access professional technical support without extended operational downtime. Annual Maintenance Contract (AMC) plans are available from Year 2 onwards for customers who prefer scheduled professional servicing as part of their planned maintenance framework.

Why Choose Us

Austar Technologies has built its position as India's most respected 20 Feet Geared HVLS Fan Manufacturer through a manufacturing philosophy grounded in international-grade engineering, genuine third-party certification, and an after-sales commitment that goes far beyond what the industry standard demands. With over 4,500 successful HVLS fan installations across 28 Indian states, delivered from a dedicated manufacturing facility in Ahmedabad, Gujarat, the company brings a depth of real-world installation experience — across automobile plants, mega-warehouses, airport terminals, textile mills, food processing units, gymnasiums, and community facilities — that no competitor currently matches. Every AS205 unit is CE certified by TUV Nord, assembled with NORD German-make geared motors, and backed by a 3-year structural warranty alongside lifetime support availability. Customizable color options, BMS compatibility, plug-and-play installation, and a dedicated engineering team experienced in designing ventilation layouts for complex industrial spaces mean that every Austar Technologies customer receives a complete, tailored ventilation solution — not just a product off a shelf. Choosing Austar Technologies as your ventilation partner is choosing a company whose integrity, technical capability, and service accountability have been proven across thousands of installations and are ready to be proven again at your facility.

Conclusion

The case for installing a 20 Feet Geared HVLS Fan in any large Indian facility is built on seven distinct and measurable benefits: extraordinary coverage per unit, significant and sustained energy savings, improved worker health and productivity, robust German-engineered construction, effective condensation control, genuine cross-sector versatility, and long-term warranty and service support from a manufacturer with a pan-India service infrastructure. Austar Technologies brings all of these benefits together in the AS205 — a product built to international quality standards, certified by TUV Nord, and proven across thousands of installations. For facility managers ready to invest in the right large-space ventilation solution, the 20 Feet Geared HVLS Fan from Austar Technologies is the definitive answer.

Ready to experience the full benefits of a 20 Feet Geared HVLS Fan in your facility? Talk to the Austar Technologies team today and discover how the AS205 can transform airflow, slash energy costs, and create a more productive workspace from the ceiling down. Call us: +91 98246 85566 or email online@austarfansindia.com
